Working Principle

The materials enter from the hopper, cross the feeding throat and go inside the grinding cavity in the end.First,the materials are pulverized in the first grinding cavity through interactive motion between movable teeth disc and fixed teeth disc.The first finished materials flow to the second grinding cavity (external grinding cavity)through holes of discharging materials on the movable teeth disc.There is hammer head with high speed transmission in the external grinding cavity,the first finished materials are pulverized at the second time through interactive motion,strike,cutting,rubbing between hammer head with high speed rotation and inner teeth ring in the internal grinding cavity. All of finished materials in the end discharge to collecting bag or container through sieve under the centrifugal force.

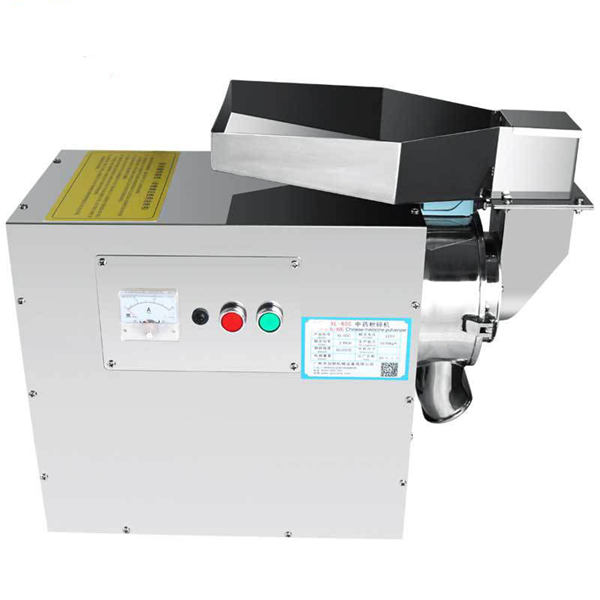

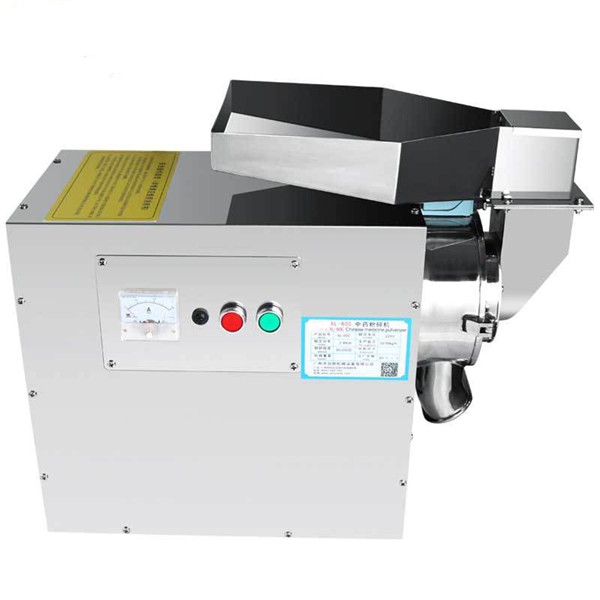

The machine can grind kinds of soft, hard medicine herbs and other materials quickly,mainly including ganoderma lucidum, western ginseng, iron maple bucket, pseudo-ginseng, pearls, stem grass, ores, whole grains, maca, dry herbal plants etc except for oily, humid.

Technical Parameter
