Essential Oil Distillation Equipment

Volume: 10L,50L, 300L ,500L,1000L, 3000L, 6000L etc
Distillation method: steam distillation and hydro distillation
Application: Grass, flower, branch, root, leaf, wood, gum etc
Heating method: Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel

INQUIRY

Product Details

Product Tags

Production introduction

We have different structure of 10L,50L, 300L ,500L,1000L, 3000L, 6000L etc essential oil distillation machine, according to raw materials characteristic and distillation method, which can choose different discharge method, bottom pneumatic slag discharge, manual butterfly valve slag discharge valve; and we have vertical condensation or horizontal condensation for you to choose.

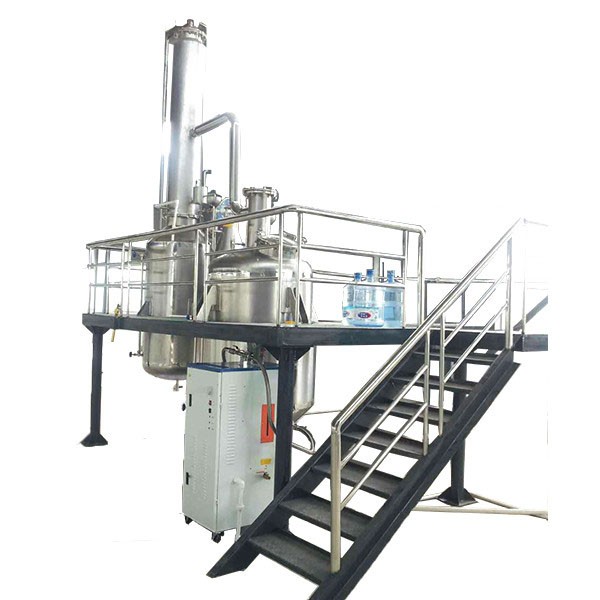

it consists of distillation kettle, top notes condensation collector, hydrolat collection tank, discharge valve, oil-water separator, steam boiler and other related pipelines composition.

Technical Parameter

Model	Capacity (kg/batch)	Power (kw)	Steam quantity	Votage	Distillation time
10L	2kg/batch	2.2kw	/	220V 50Hz	3-4hour/batch
50L	10kg/batch	3KW	4kg/h	220/380V 50Hz	3-4hour/batch
100L	20kg/batch	6KW	8kg/h	220/380V 50Hz	3-4hour/batch
300L	60kg/batch	24KW	34kg/h	380V 50Hz	3-4hour/batch
500L	100kg/batch	36KW	50kg/h	380V 50Hz	3-4hour/batch
1000L	200kg/batch	48KW	68kg/h	380V 50Hz	3-4hour/batch
3000L	600kg/batch	108KW	150kg/h	380V 50Hz	3-4hour/batch
5000L	1000kg/batch	180KW	250kg/h	380V 50Hz	3-4hour/batch
