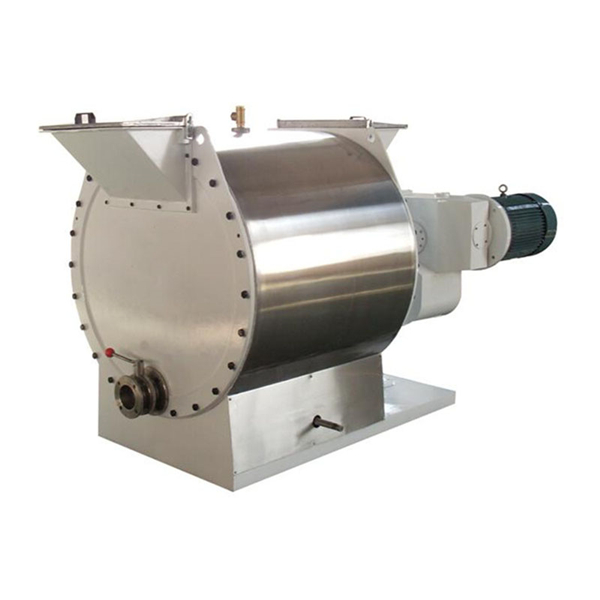

Chocolate Refine Machine

Capacity: 20L-3000L
Voltage: 220V/380V
Application: Cocoa powder, cocoa butter, sugar powder, milk powder, etc.
Materials: SS304

INQUIRY

Product Details

Product Tags

Introduction

The chocolate conche machine is one of the major chocolate machines for the fine grinding of chocolate materials, have the function of fine grinding, sweetening, dehydrating, diluting and emulsificating. Manual model and automatic model are available.

Feature

Chocolate conch is used in fine grinding of chocolate mass; it is the main equipment in chocolate production line.

Double -layer, warm water in layer.

Good brand Chinese motor and electrics.

Sticks and scrapers Material: 65#Mn steel.

Machine body：painted carbon steel.

Technical parameter

Model	Capacity	Grinding time	Fineness	Heating power	Motor power
CT-20L	20L	8-10h	20-25μm	0.6kw	1.5kw
CT-40L	40L	8-12h	20-25μm	1kw	2.2kw
CT-100L	100L	12-16h	20-25μm	2.5kw	5.5kw
CT-500L	500L	16-22h	20-25μm	4kw	15kw
CT-1000L	1000L	16-22h	20-25μm	5kw	22kw
CT-2000L	2000L	16-22h	20-25μm	6kw	37kw
CT-3000L	3000L	16-22h	20-25μm	12kw	45kw
