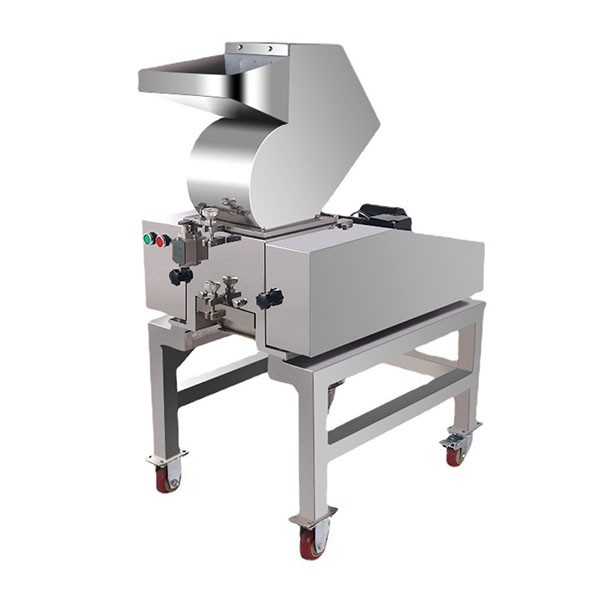

Crushing Machine
Introduction
Our stainless steel crusher is a new type of equipment produced after combining the advanced experience of domestic and foreign industries. It has the advantages of good quality, luxurious appearance, low noise, low vibration, low energy consumption, excellent blade material, long service life, and easy cleaning.
The machine is made of stainless steel, has a luxurious and elegant appearance, and complies with GMP requirements.
The feed hopper, crushing chamber and screen are designed separately, making them easy to load and unload.
The material inlet adopts a vertical curtain design and is made of high-quality silicone strips with a thickness of 5 mm to avoid material splashing.
The front and rear walls of the crushing chamber are double-layered with low noise.
The pulley is equipped with a protective cover, which is safe and reliable.
There is a travel switch between the upper and lower layers of the crushing chamber. When the upper feed hopper is opened, the power will be forcibly cut off to ensure safety.
The motor is equipped with an overload protection device and a power interlock protection system.
Made of imported high-quality tool steel, the specially-made cutter is particularly durable. The installation design of the cutter can be telescopically adjusted. It can be sharpened multiple times after being blunted. It can be used repeatedly and has a long service life.
The processing technology is mature, and important components such as the box body and tool holder are processed as a whole to ensure matching accuracy. The movable tool base is a stepped scissor design, which decomposes the cutting force, causing the cutting force to double.
Reasonable structure, easy operation, energy saving, durable, practical and economical.
Universal plastic crusher uses sealing bearing to keep the bearing rotation for a long time. The knife type design is reasonable, the product is uniform, the heating of the blade seat, and the appearance design is beautiful and generous.
The height and width of the frame of the stainless steel crusher are 15-30 cm larger than that of the traditional iron crusher, which greatly increases the length, width and height of the hopper. The volume of the hopper is larger than that of an ordinary crusher. More than times.
The discharge port of this series of stainless steel crushers adopts a unique everted skirt treatment and can be connected to an external cloth bag. It has the following advantages:
1. Minimize the flying dust generated during the material crushing process;
2. The capacity of the hopper of the traditional crusher is extremely limited. After the hopper is full, the power must be turned off and replaced with another hopper to continue working, resulting in a waste of labor and low production efficiency. The unique design of this machine greatly reduces labor waste is eliminated and production efficiency is improved. (Remarks: The traditional crusher has no external skirt design, and the outlet is too low from the ground, so it is impossible to receive the bag)
The 180/250/models of this series of crushers are equipped with rubber casters for easy movement, and the casters are equipped with brakes.
Technical Parameter
Model | Capacity | Weight | Voltage | Motor Power(KW) | Movable Knife No. | Fixed Knife No. | Spindle speed(r/min) | Feed size | Dimensions |
PE-180S | 80-150 | 140 | 220V | 2.2 | 9 | 2 | 720 | 190*138 | 550*840*1200 |
PE-250S | 120-280 | 190 | 380V | 4 | 6 | 2 | 690 | 245*165 | 645*1002*1152 |
PE-400S | 200-400 | 355 | 380V | 7.5 | 12 | 2 | 600 | 405*208 | 845*1125*1335 |
PE-600S | 300-500 | 580 | 380V | 15 | 18 | 4 | 490 | 605*213 | 1048*1381*1416 |
PE-800S | 500-1000 | 980 | 380V | 22-37 | 24 | 4 | 450 | 805*228 | 1290*1743*1716 |
PE-1000S | 800-2000 | 1400 | 380V | 37 | 30 | 4 | 400 | 1000*320 | 1485*1485*2112 |
Screen size:4/5/6/8/10/12/14/16mm(optional*)
Working principle
The stainless steel crusher is made of all stainless steel and consists of five parts: frame, feed hopper, crushing chamber, screen frame, receiving hopper, and motor. It has a simple structure, easy cleaning, low noise, and good effect. It is currently the most ideal stainless steel crushing equipment. During processing, the material enters the crushing chamber from the feed hopper and is crushed by the impact shearing of the rotating movable knife and the fixed static knife. The ideal particles are obtained by adjusting the gap between the knives and using a suitable screen.
Application
The stainless steel crusher is suitable for crushing Chinese herbal medicine, chemical materials, ores with low hardness, as well as waste, defective products or injection nozzles of polystyrene, polypropylene, nylon, engineering plastics and polychlorine foam soft materials. If the corresponding sieve plate is replaced and the blade gap is adjusted, it can also crush various plastic waste products such as blown film, calendered film, flakes, sheets, mineral water bottles, etc.
1. Product features: In the crushing and processing of food, medicine, chemical industry, feed, scientific research and other industries, due to the different shapes, sizes and physical properties of the original materials, it is difficult to feed and process. Based on these characteristics, we have specially developed an all-stainless steel crusher. This machine is not limited by the viscosity, hardness, softness, etc. of the material, and can crush any material very well.
2. Main application: This machine is mainly used in the food, pharmaceutical, and chemical industries to crush hard, fiber-containing and other difficult-to-process materials, including wood, fresh bones, plastics, etc. It can also be used as a front-end process for fine crushing. process.
3. This machine is limited to the machine principle and tool material, and cannot be used to crush hard materials such as metal, high-hardness ore, and extremely high-density wood.
